Since 2006, Dürr has led the way in simultaneous two-sided coating technology for battery electrode production, constantly refining and enhancing its offerings. This latest iteration, developed through substantial research and development investment, showcases Dürr’s commitment to providing cutting-edge solutions that drive efficiency and cost-effectiveness in manufacturing.
Streamlined configuration for maximum efficiency

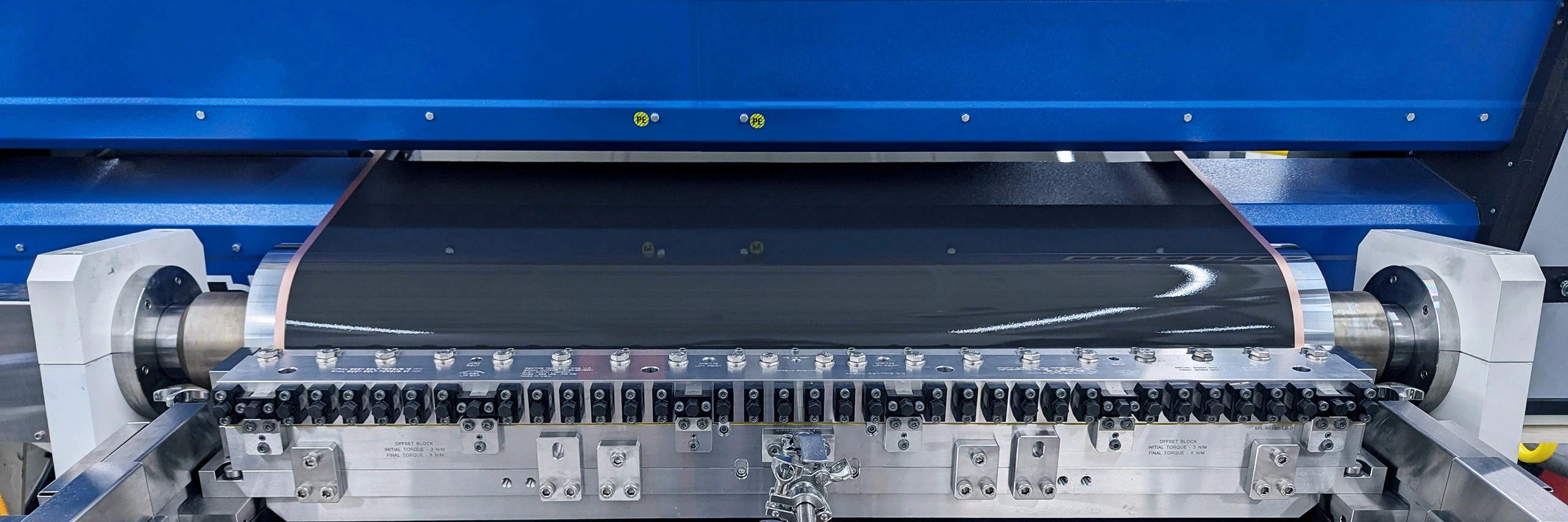

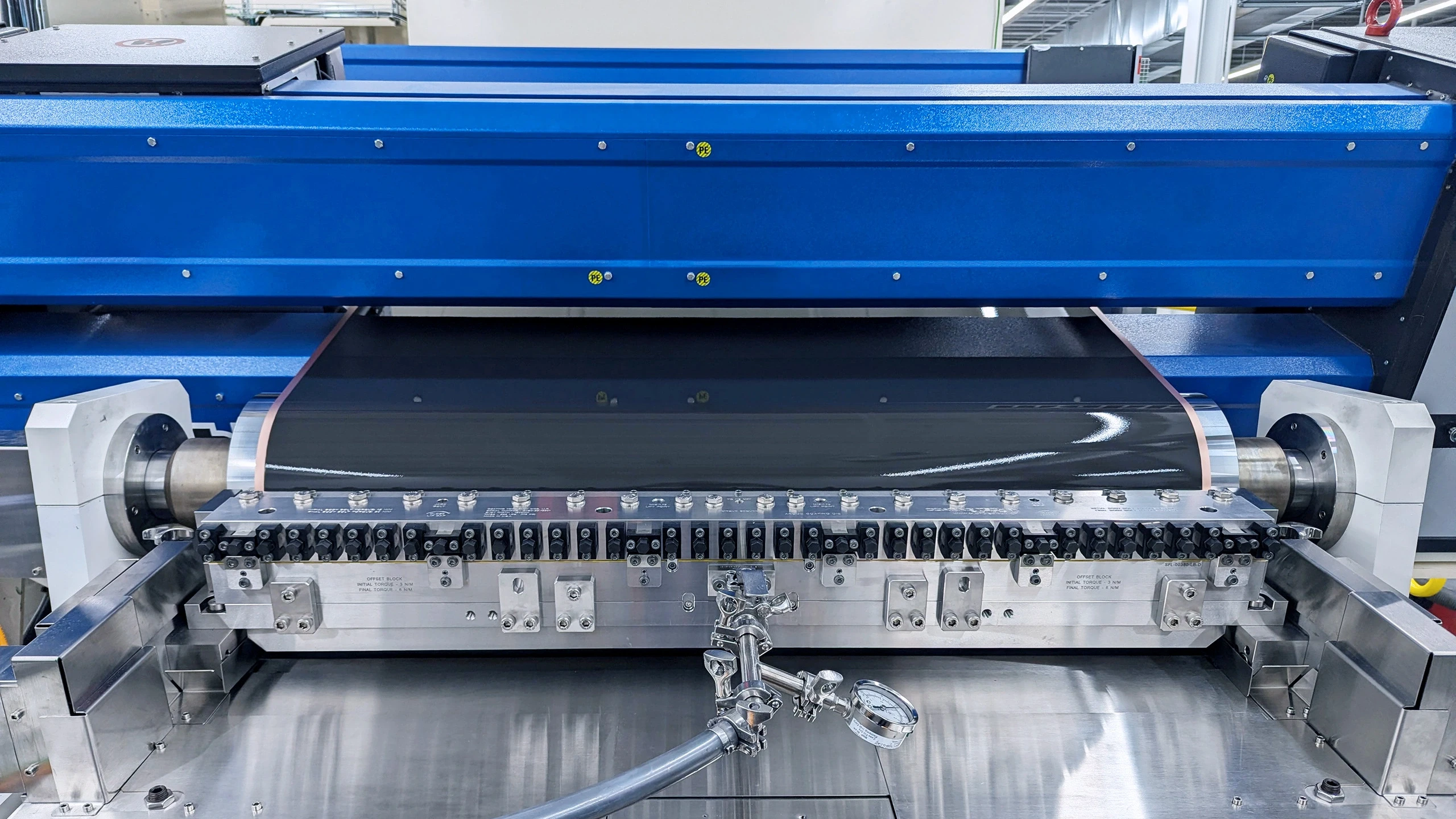

The GigaCoater™ features a straight-path product flow with two coating stations combined in a single location, complemented by a non-contact flotation drying system. This streamlined configuration results in a more compact manufacturing footprint, reduces energy consumption, and eliminates edge curl after drying. The innovative coating process uses a slot-die against a backing roll, followed by a tensioned-web-over-slot-die (TWOSD), enabling simultaneous two-sided coating of the foil in a single pass. The air flotation dryer ensures even, non-contact drying on both sides, further improving electrode quality.
Significant reduction in operating costs
The simplified layout of the GigaCoater™ results in substantial operational cost savings. These savings come from reduced energy consumption thanks to the single-dryer system, reduced coil handling, fewer personnel needs thanks to the one-level design, lower material waste, and a smaller space requirement. Together, these efficiencies offer enormous annual savings.
In addition to cost savings, the GigaCoater™ enhances product quality by eliminating edge curl, ensuring uniform drying on both sides, and improving top-to-bottom alignment.
Extension of simultaneous two-sided coating product family

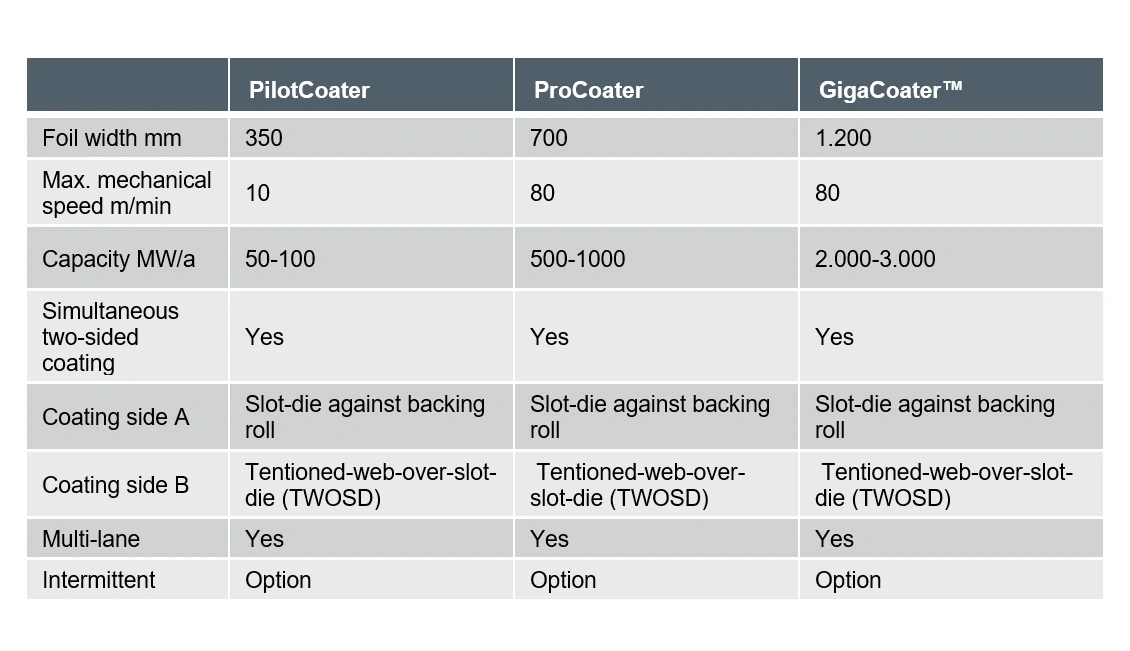

With the GigaCoater™, Dürr expands its portfolio of simultaneous two-sided coating machines, which previously consisted of the PilotCoater and ProCoater. The PilotCoater which can handle foils up to 350mm with coating speeds of up to 10 meters/minute, making it ideal for production, as well as ongoing process and product development. The ProCoater, a larger scale coating line, accommodates web widths from 350 to 700mm and coating speeds up to 50 m/min, supporting large-scale lithium-ion battery production. Both products are already in use by leading battery manufacturers worldwide.
